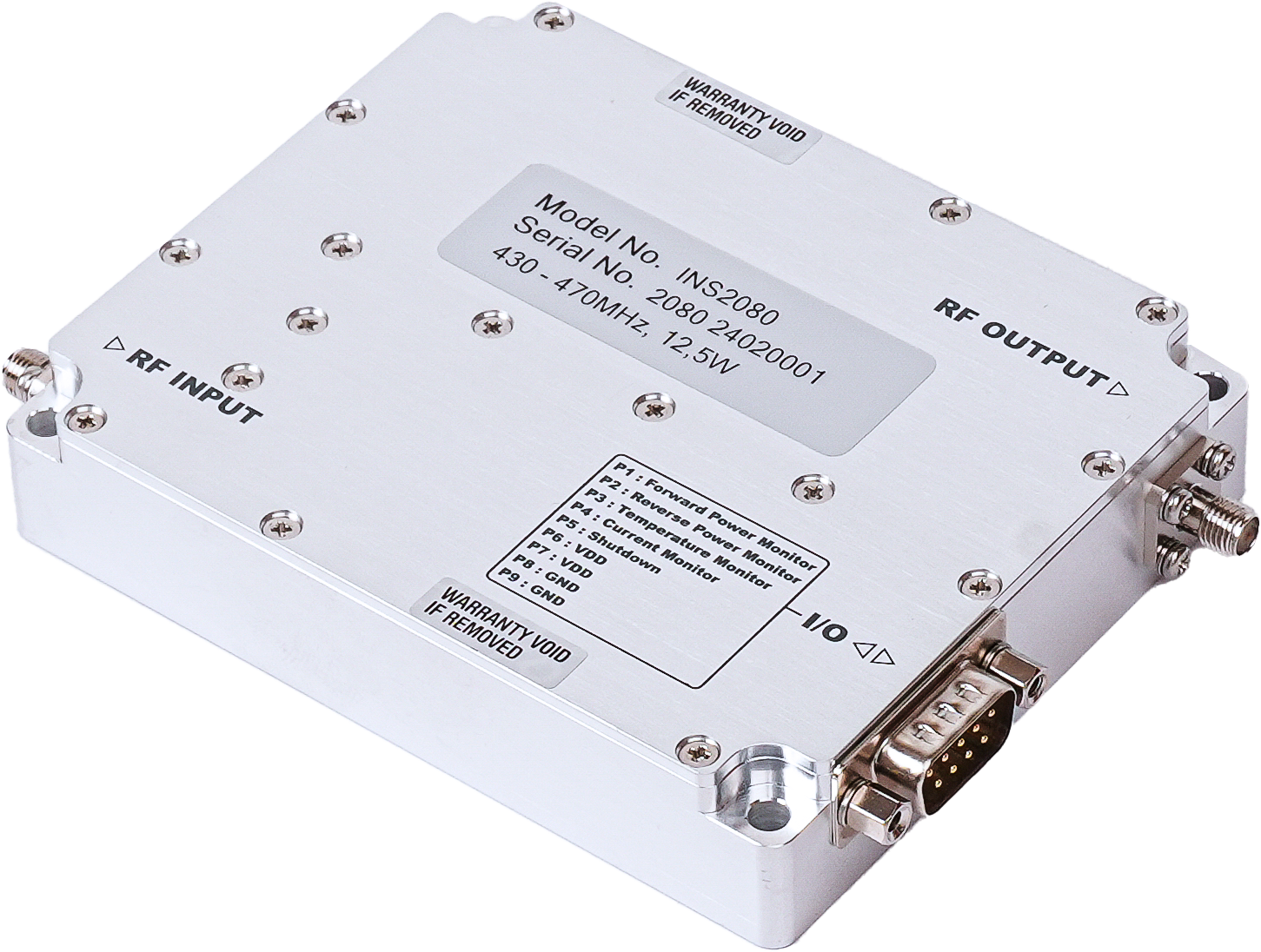

INS2080
430-470MHz 12.5W Power Amplifier
| Key Specifications (Click on Data Sheet Tab for Additional Details). | |
| Frequency, Start | 430 MHz |
| Frequency, Stop | 470 MHz |
| Pout | 12.5 Watt |
| Gain | 41 dB |
| Voltage | 28 Volts |
| Current | 1.5 Amps |
| Size | 110ⅹ90ⅹ22 mm |
| Application | CW/FM/AM |
