ILA1053
$2,300.00
17 in stock

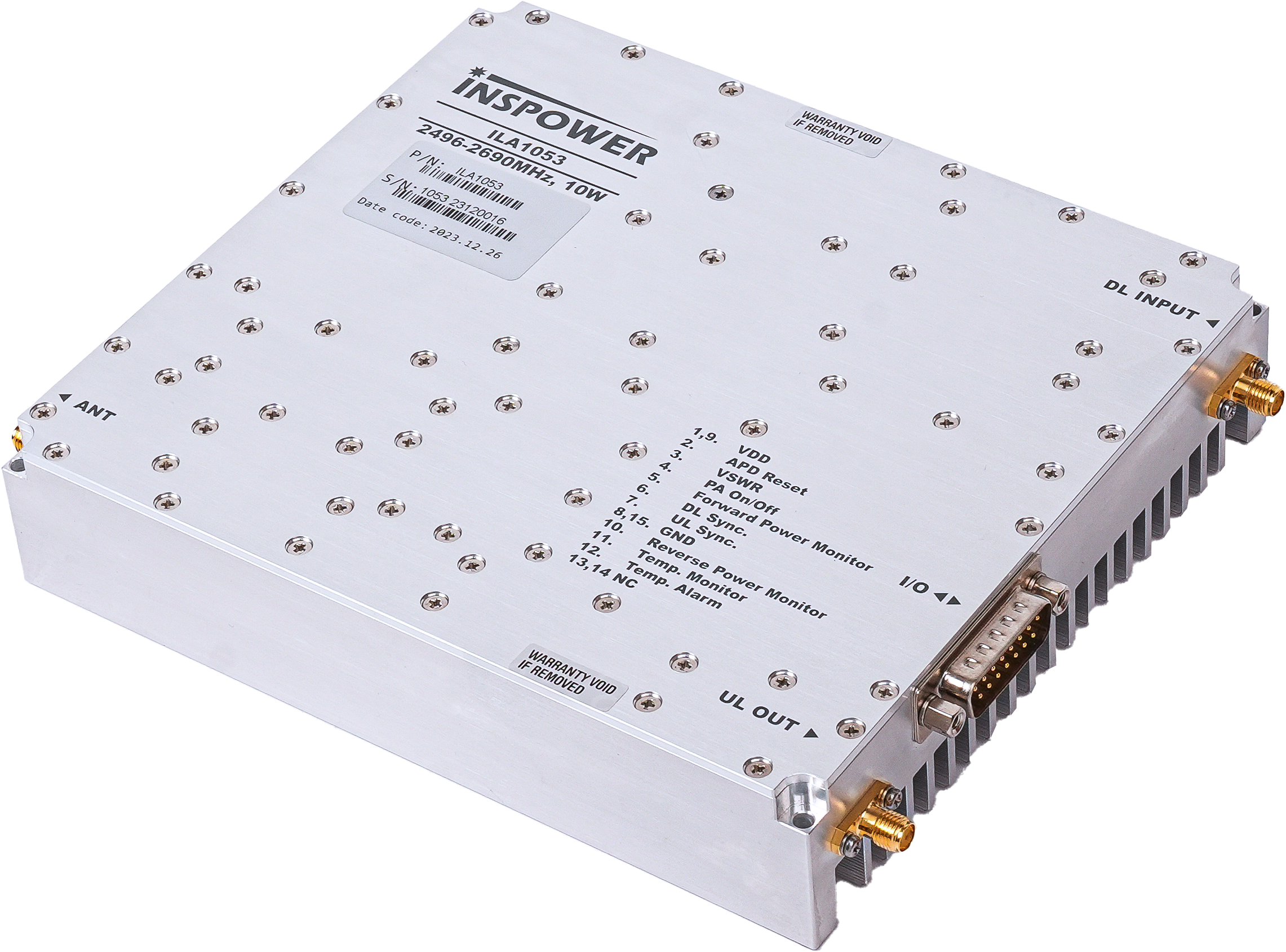

2496-2690MHz 10W LTE-TDD, 5G NR TRx Power Amplifier
| Key Specifications (Click on Data Sheet Tab for Additional Details). | |
| Frequency, Start | 2496 MHz |
| Frequency, Stop | 2690 MHz |
| Pout | 10 Watt |
| Gain | 42 dB |
| Voltage | 28 Volts |
| Current | 2.5 Amps |
| Size | 170ⅹ150ⅹ35 mm |
| Application | LTE band 41 / 5G NR Band n41 |
PDF DATA
